235/70R15

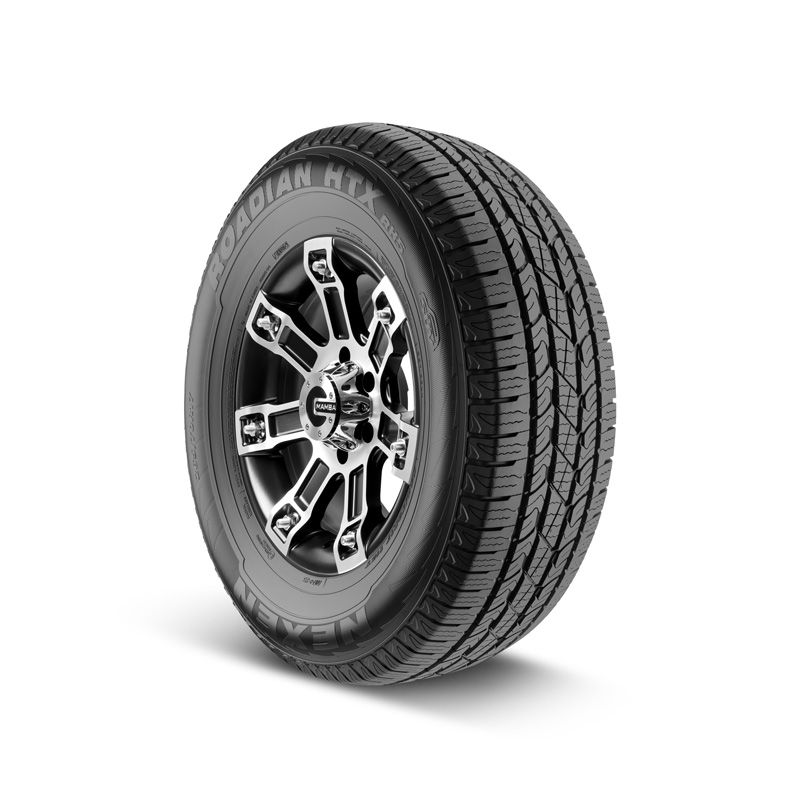

Roadian HTX RH5
HIGHWAY TERRAIN

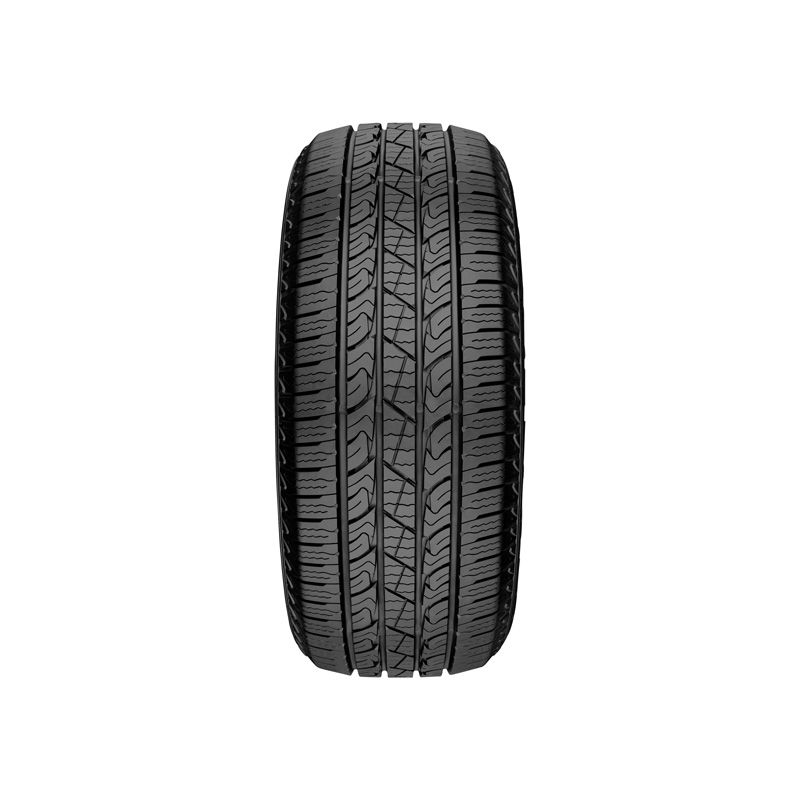

The Roadian HTX RH5 contains a four-channel groove design in forward direction to enhance drainage and hydroplaning performance on wet roads. The three- and four-division tread design improves grip while enhancing wear performance. The reinforced shoulder block design results in improved cornering and handling, while a center rib block design optimizes grip and steering performance.
Q, R, S, T, H and V Speed Rated
UTQG 640 A A- (P-Metric)
UTQG 640 A A- (P-Metric)
THIS TIRE WAS DESIGNED TO PERFORM...
COMFORT
9
HANDLING
8
BRAKING
8
FUEL
8
TREAD
9
TREAD WEAR
WARRANTY
WARRANTY
(P) 65,000 mi : (LT) 40,000 mi
ROAD HAZARD
WARRANTY
WARRANTY
N/A
ROADSIDE
ASSISTANCE
ASSISTANCE
N/A
5 OUT OF 5
WRITTEN BY: Spencer Taylor | September 05, 2023
These tires have been awesome for my AWD Toyota Highlanders. They work really well here in Utah for wintery, rainy, muddy off-road conditions. Nexen will definitely be my next set I purchase.
5 OUT OF 5
WRITTEN BY: John Gebman | July 05, 2022
These are the third tires tried on our small trucks, but my third set of Nexens. Never again will we buy anything but Nexens. Every set has been perfect and better than anything we tried. These tires roll great, quiet and actually eliminated bounce we thought was the shocks, but as soon as we put these on, all the bounce stopped. Nothing comes close, especially for the price. Period
Note: This series has been replaced by the Roadian HTX2 - some sizes may no longer be available
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,764
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
6.0~7.5
SECTION WIDTH (INCH)
9.0
OVERALL DIAMETER (INCH)
27.4
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,929
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
28.0
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,271
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9.3
OVERALL DIAMETER (INCH)
28.9
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,469
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.7
OVERALL DIAMETER (INCH)
29.6
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,929
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
6.0~7.5
SECTION WIDTH (INCH)
9.0
OVERALL DIAMETER (INCH)
28.4
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,205
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.0
RIM - APPROVED
6.0~7.5
SECTION WIDTH (INCH)
8.8
OVERALL DIAMETER (INCH)
29.3
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,094
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
29.0
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,205
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9.3
OVERALL DIAMETER (INCH)
29.8
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,403
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.5~8.0
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
29.5
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,403
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.5~8.0
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
30.5
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,271
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
29.1
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,403
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
30.1
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,469
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.7
OVERALL DIAMETER (INCH)
30.6
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,756
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.5
OVERALL DIAMETER (INCH)
31.7
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,601
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
11.0
OVERALL DIAMETER (INCH)
31.2
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,874
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9.0
OVERALL DIAMETER (INCH)
28.5
TREAD DEPTH (/32")
11.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,205
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
29.1
TREAD DEPTH (/32")
11.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,403
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
30.0
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,403
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
7.0~8.5
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
29.5
TREAD DEPTH (/32")
11.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,337
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.5~8.0
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
30.6
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,337
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
30.1
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,469
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
31.1
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,469
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.5~9.5
SECTION WIDTH (INCH)
10.7
OVERALL DIAMETER (INCH)
30.6
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,679
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.7
OVERALL DIAMETER (INCH)
31.7
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
White
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,929
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
29.1
TREAD DEPTH (/32")
11.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,337
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
30.0
TREAD DEPTH (/32")
11.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,039
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
7.0~8.5
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
29.6
TREAD DEPTH (/32")
11.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,403
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
31.1
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,535
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
32.1
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,337
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.5~9.5
SECTION WIDTH (INCH)
10.7
OVERALL DIAMETER (INCH)
30.5
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,601
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.5~9.5
SECTION WIDTH (INCH)
10.7
OVERALL DIAMETER (INCH)
31.5
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,756
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.7
OVERALL DIAMETER (INCH)
32.6
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,756
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.5~9.5
SECTION WIDTH (INCH)
11.0
OVERALL DIAMETER (INCH)
32.1
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,271
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
31.1
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,149
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.0
RIM - APPROVED
7.0~8.5
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
31.5
TREAD DEPTH (/32")
11.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,535
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.5
RIM - APPROVED
7.5~9.5
SECTION WIDTH (INCH)
11.2
OVERALL DIAMETER (INCH)
31.9
TREAD DEPTH (/32")
10.5
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,679
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.0
RIM - APPROVED
7.5~9.5
SECTION WIDTH (INCH)
11.0
OVERALL DIAMETER (INCH)
33.0
TREAD DEPTH (/32")
12.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,601
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
9.5
RIM - APPROVED
9.0~10.5
SECTION WIDTH (INCH)
11.2
OVERALL DIAMETER (INCH)
32.1
TREAD DEPTH (/32")
11.0
TREADWEAR
640
TRACTION
A
TEMP
A
SIDEWALL
Black
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
2,680
MAX LOAD (LBS) - DOUBLE
2,470
RIM - MEASURING
6.0
RIM - APPROVED
5.5~7.0
SECTION WIDTH (INCH)
8.5
OVERALL DIAMETER (INCH)
30.4
TREAD DEPTH (/32")
13.0
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
Black
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
2,680
MAX LOAD (LBS) - DOUBLE
2,470
RIM - MEASURING
6.0
RIM - APPROVED
6.0~7.0
SECTION WIDTH (INCH)
8.8
OVERALL DIAMETER (INCH)
29.3
TREAD DEPTH (/32")
13.0
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
Black
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
3,042
MAX LOAD (LBS) - DOUBLE
2,778
RIM - MEASURING
6.5
RIM - APPROVED
6.0~7.5
SECTION WIDTH (INCH)
9.3
OVERALL DIAMETER (INCH)
31.7
TREAD DEPTH (/32")
13.0
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
Black
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
3,042
MAX LOAD (LBS) - DOUBLE
2,778
RIM - MEASURING
7.0
RIM - APPROVED
6.5~7.5
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
30.5
TREAD DEPTH (/32")
13.0
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
Black
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
3,415
MAX LOAD (LBS) - DOUBLE
3,085
RIM - MEASURING
7.5
RIM - APPROVED
7.0~8.0
SECTION WIDTH (INCH)
10.5
OVERALL DIAMETER (INCH)
31.7
TREAD DEPTH (/32")
13.0
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
White
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
3,085
MAX LOAD (LBS) - DOUBLE
2,835
RIM - MEASURING
6.5
RIM - APPROVED
6.0~7.5
SECTION WIDTH (INCH)
9.3
OVERALL DIAMETER (INCH)
31.8
TREAD DEPTH (/32")
15.0
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
Black
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
3,195
MAX LOAD (LBS) - DOUBLE
2,910
RIM - MEASURING
7.0
RIM - APPROVED
6.5~7.5
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
31.5
TREAD DEPTH (/32")
13.0
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
Black
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
3,195
MAX LOAD (LBS) - DOUBLE
2,910
RIM - MEASURING
8.0
RIM - APPROVED
7.0~8.5
SECTION WIDTH (INCH)
10.7
OVERALL DIAMETER (INCH)
31.7
TREAD DEPTH (/32")
13.0
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
White
MAX AIR (PSI)
80
MAX LOAD (LBS) - SINGLE
3,415
MAX LOAD (LBS) - DOUBLE
3,085
RIM - MEASURING
8.0
RIM - APPROVED
7.5~9.0
SECTION WIDTH (INCH)
11.0
OVERALL DIAMETER (INCH)
32.1
TREAD DEPTH (/32")
13.5
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
White
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,270
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.5
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.6
OVERALL DIAMETER (INCH)
30.5
TREAD DEPTH (/32")
13.5
TREADWEAR
-
TRACTION
-
TEMP
-
SIDEWALL
Black
Searched:
